CTMS-1TB1.
The bolted construction of this little vehicle can be seen in this image, as well as details of the suspension. Note the track skids on top of the suspension bogie frames. The turret crew and driver were provided with protected vision blocks around the turret and hull. (Photo by Richard S. Eshleman.)

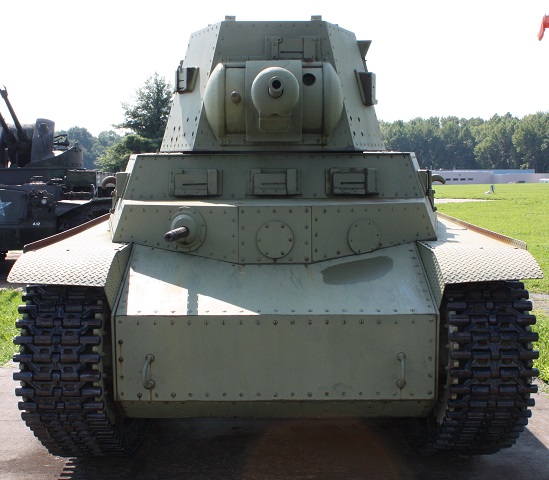

The unusual armament suite of the tank is displayed here. The automatic 37mm gun had a coaxial .30cal MG to its right, and the hull front was studded with a ball mounted .30cal MG as well as two fixed .30cal MGs, the mounts for which are blanked off on this tank. The gunner sat to the left of the 37mm gun (the aperture for his telescopic sight can be seen), and had a vision block above the gun mount. (Photo by Richard S. Eshleman.)

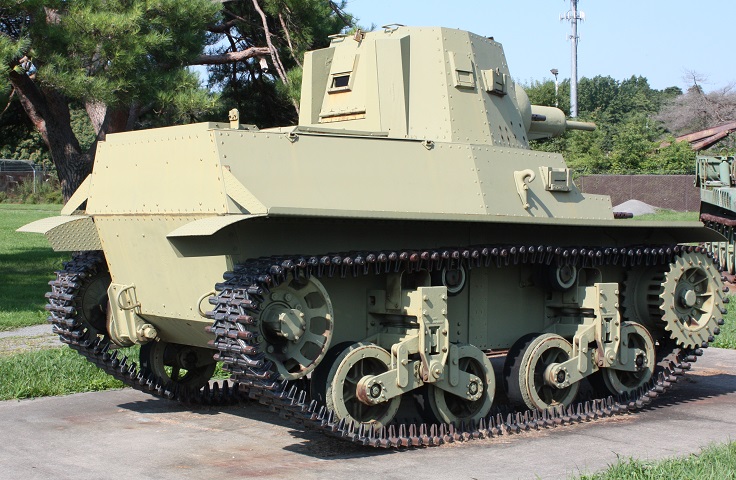

The eccentric mechanism for adjusting the rear idler wheels can be seen on the far side of the tank, and the turret rear featured another vision block. (Photo by Richard S. Eshleman.)
